Drag to turn 360°, move up and down
up to 700g
up to 20 tons/h
6″ cam-lock
HMT 12m
Our PESCAMOTION 30 fish pump is fully adapted to fishing boats for easy and quality transfer of herring, sardines, anchovies, mackerel schools and even small pelagics, up to 700g.
The Pescamotion’s housing and frame are made of 316L stainless steel and are therefore perfectly compatible with seawater.
This range of stainless steel pumps is lightweight, easy to handle, operate and move from one place to another, and has a high flow rate.
Fish Pumps – Fish Pump Pescamotion 30 (6”) Fishing
Product description
High performance
Optimised by powerful numerical simulation tools, the Pescamotion 30’s performance matches its exceptional design.

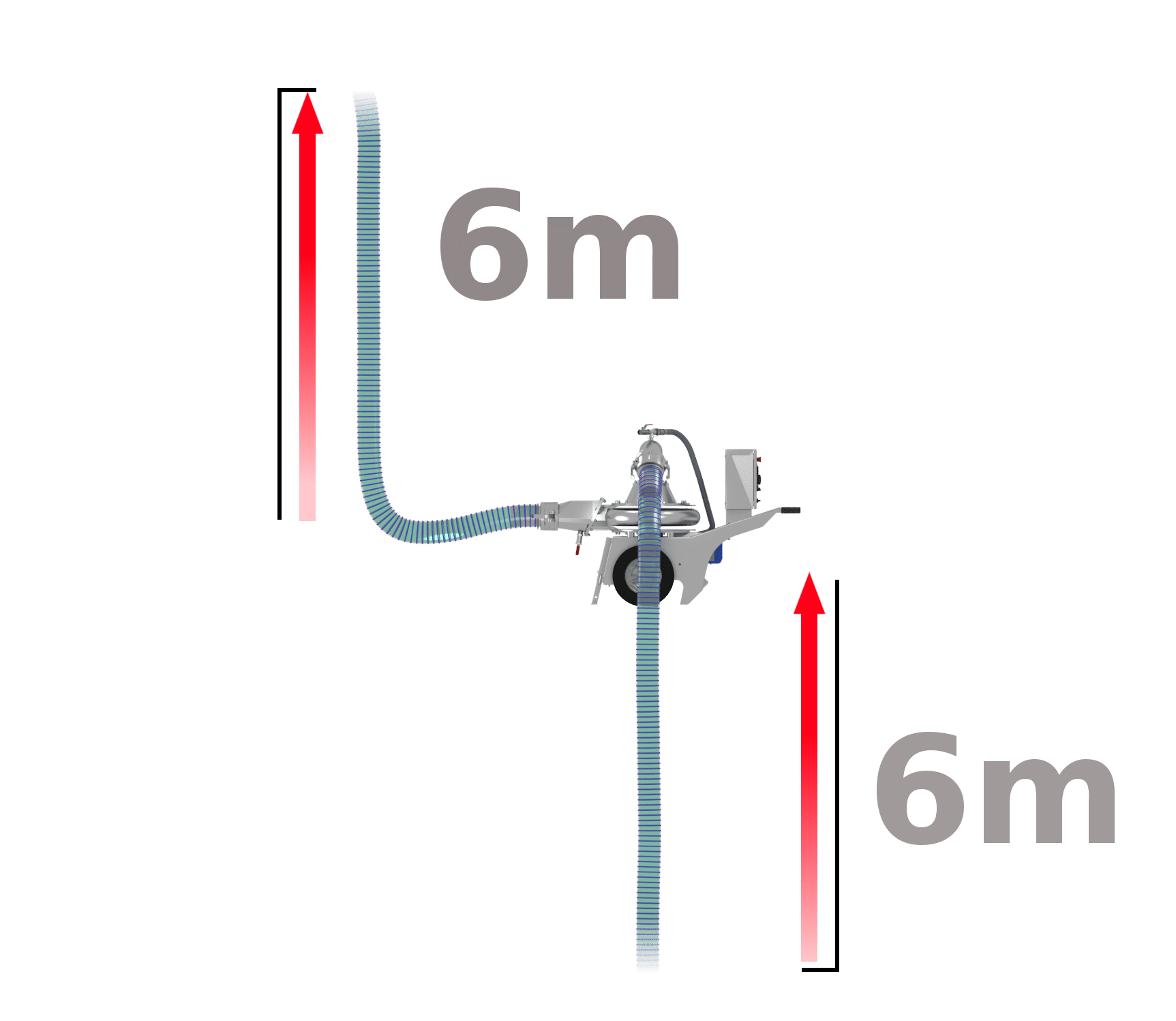

Its 12m HMT (total head) allows it to adapt easily to any situation.
Available in 2 power ratings: 3 and 5.5 kw, it can transport your fish over long distances (> 1 km with a 5.5 kw motor).
Reduced maintenance with the “Direct drive”
With our exclusive “Direct drive” system, the stainless-steel shaft of the impeller is held directly in the gear motor unit. There is no need for maintenance to manage the tension or the change of belts as in a standard pump on the market. The Direct Drive system considerably reduces the number of moving parts.
Ultra-fast priming
We have designed this pump to ensure simple, fast and efficient priming.
That is why we have equipped the Pescamotion 30 with a real liquid ring vacuum pump to fill the hose and the pump body very quickly.
Electrical box
The control box is well protected in its 4 mm thick aluminium frame and is perfectly accessible on the front of the pump.
Very easy to use, it allows you to take full control of the pump. Only 2 buttons: on-off and a potentiometer are enough to operate the Pescamotion 30.
Handy and light
With 202 kg, our pump is one of the lightest on the market despite its stainless-steel pump housing.
Perfectly balanced on its wheelbarrow, it is easy to move, even over long distances. Its large inflatable wheels enable it to be moved almost anywhere.

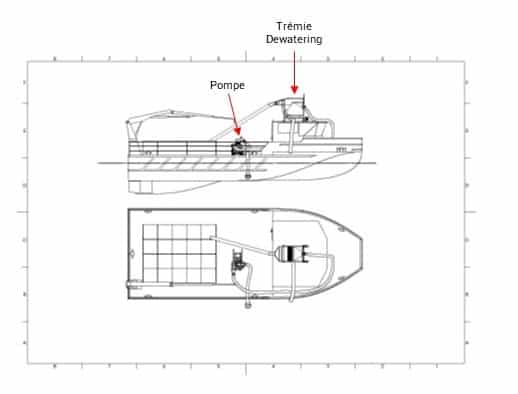

Perfectly suited for boat installation
Lightweight, easy to handle, operate and move, it is ideal for installation on seiner vessels.
Fish Pumps – Fish Pump Pescamotion 30 (6”) Fishing
PRODUCT CHARACTERISTICS
- Electrical box with speed variator
- AISI 316L Stainless steel adjustable suction elbow (Ø 6 inch – 150 mm male camlock) intake pipe
- Handle
- Marine aluminium frame (thickness 40/10)
- Direct drive geared motor
- Inflatable wheels with aluminium rims
- AISI 316L stainless steel outlet valve
- AISI 316L Stainless steel pump housing
- Fish pump outlet (Ø 6 inch – 150 mm male camlock)
- Stabilizer foot
- Priming pump
Fish Pumps – Fish Pump Pescamotion 30 (6”) Fishing
PRODUCT OPTIONS
Hoses
The pump is supplied as standard with a suction cone.
Semi-transparent, flexible hoses are available as an option in 5 or 10 m lengths:
Ø 4″ (Ø 100 mm) hoses with male and female camlock assembled at each hose extremity.
Ref. : PP0403FM length. 5 m
Ref. : PP0404FM length. 10 m
Ø 6″ (Ø 150 mm) hoses with male and female camlock assembled at each hose extremity.
Ref. : PP0603FM length. 5 m
Ref. : PP0604FM length. 10 m
Reduction 6″- 4″
A 4″ reduction on the pump inlet and outlet enables the Pescamotion 30 to be adapted for small fish pumping.
This solution allows you to use your Pescamotion 30 in a nursery and transfer your fish with a low water flow.
Ref. : PH061102
Dewatering
The dewatering hopper is an important element for the correct functioning of a fish pump.
In order to be efficient, the dewatering hopper requires a particularly well-thought-out design.
For this purpose, we have used numerical simulation. There are two sizes of water separator:
The “Dewat 30” is adapted to the Pescamotion 30 pump and the Helios 30 grader.
Ref. : TD0602
Remote control
As an option, a compact, waterproof remote control is available.
With a working distance of 200 m outdoors, it permits a complete control of the pump.
Concerned about the possible misuse of a remote control when you are far away from the pump, we have introduced an exclusive safety feature for the Pescamotion 30.
This safety device allows you to limit the pump’s rotation speed by using the remote control mode.
By turning a potentiometer on the control box, you can easily program the maximum speed of the pump in remote control mode.
This way, even far from the pump, you no longer have to worry about the speed of your pump.
Ref : PH00REM2
